For my masters in UCT’s robotics lab I built and designed the control algorithms for a legged robot which we affectionately called Kemba. The design, simulation and control aspects of this project are best documented in my MSc thesis. Our goal with Kemba was to combine the best of two actuation schemes with pneumatically actuated knees for simple, powerful, compliant, and impact resistant actuation, and proprioceptive electric actuators at the shoulder and hip for high bandwidth torque control and foot placement. Kemba is capable of bounding at up to 1.7m/s with a full flight phase, jumping just under 1m high (2.2 times it’s nominal leg length), and accelerating from rest into a top speed bound in only 2 strides and under half a second.

Here are videos of Kemba accelerating from rest and bounding around the lab on the planarising boom I also built.

A video of the robot accelerating from rest directly into a fast bound and running around the lab on the planarising boom.

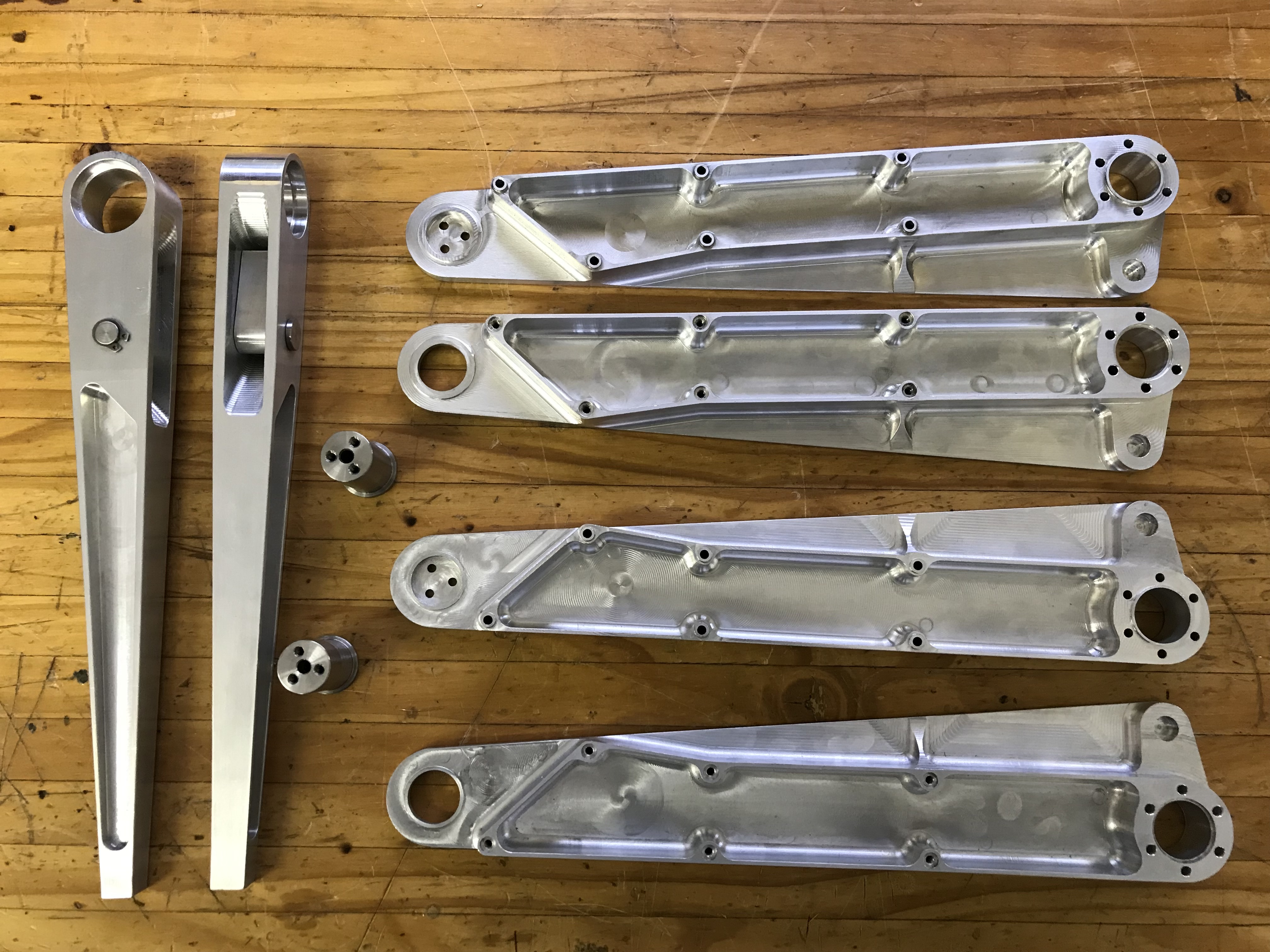

Freshly machined aluminium parts for the legs.

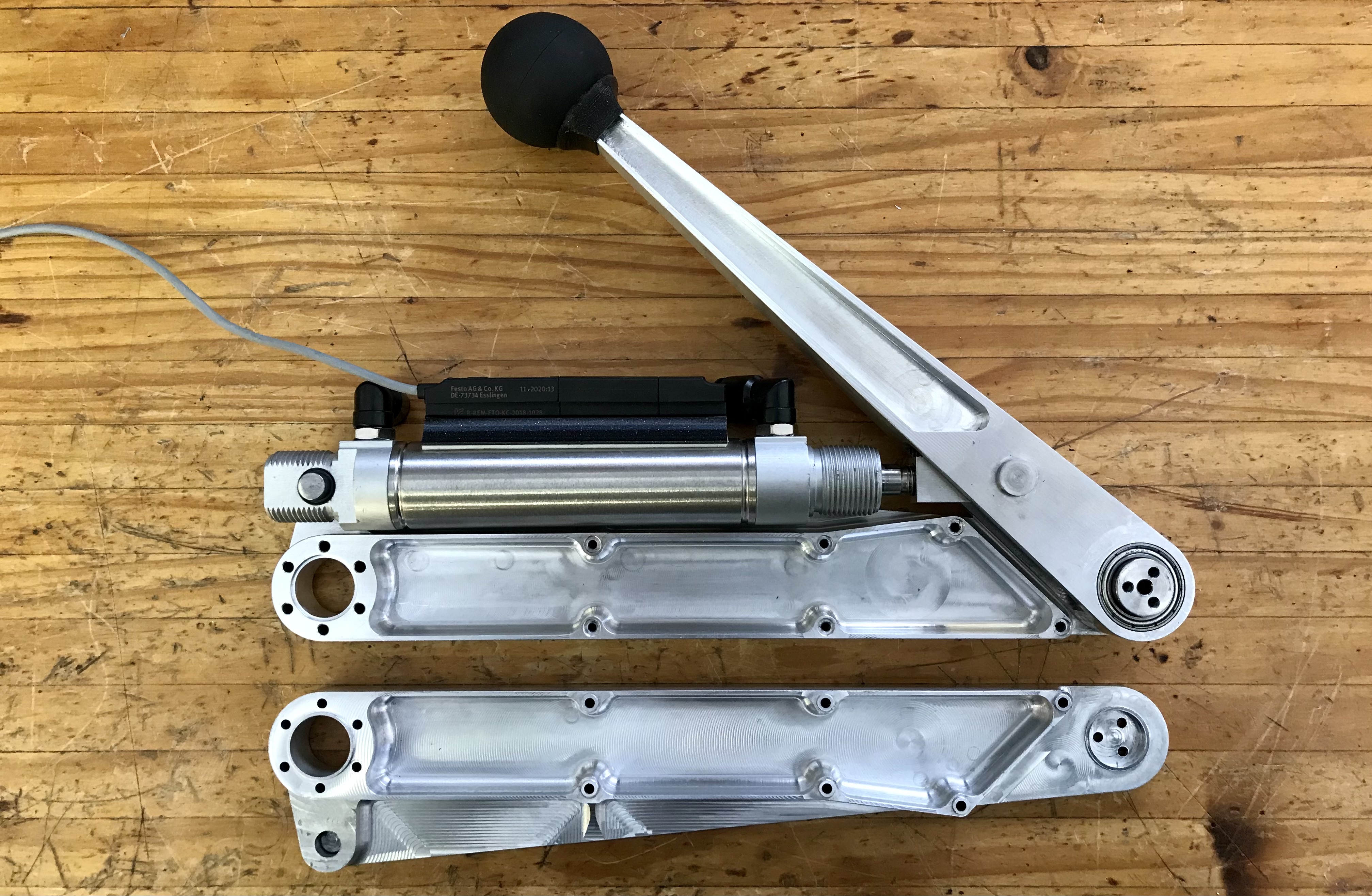

Partially disassembled leg with second femur half removed showing piston closed kinematic chain arrangement.

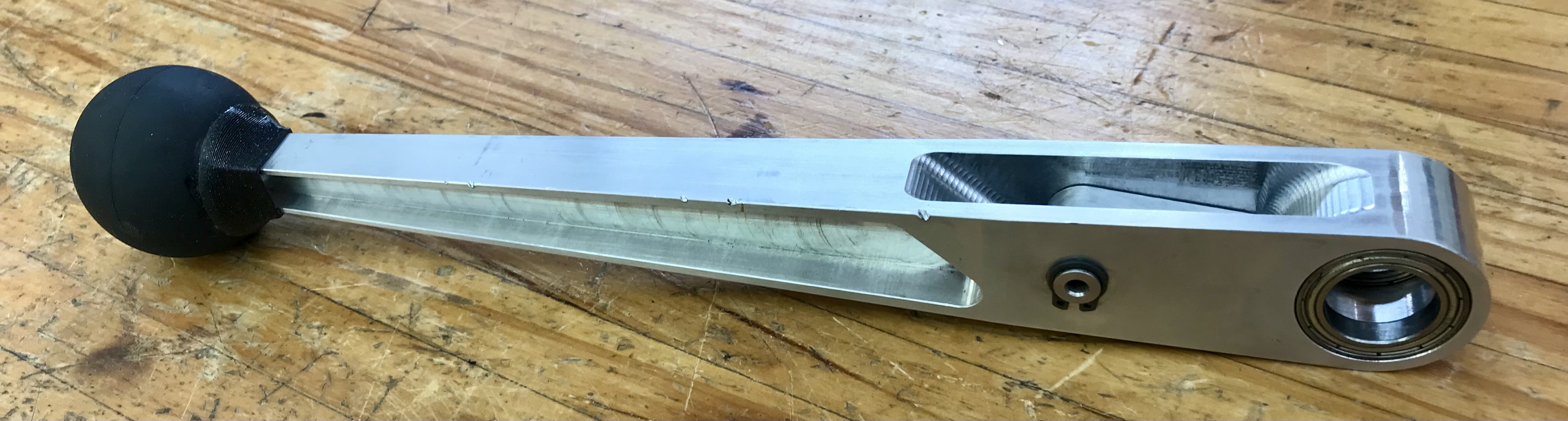

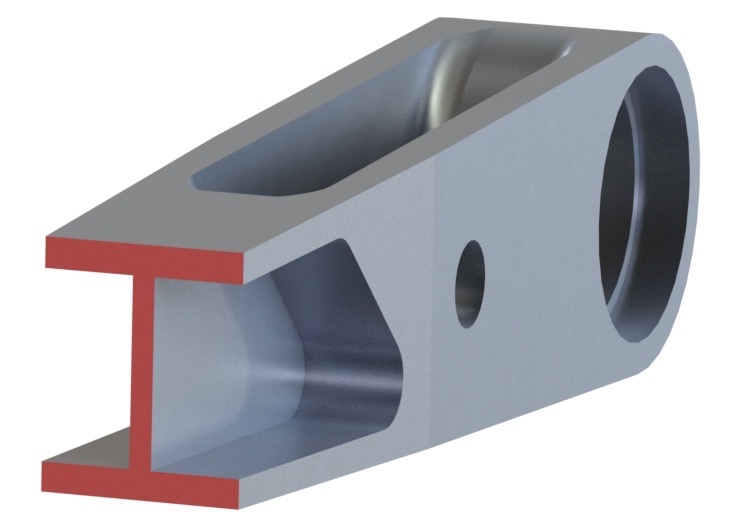

Tibia with press fit bearings and foot (Left) and section view showing I-beam cross section (Right).

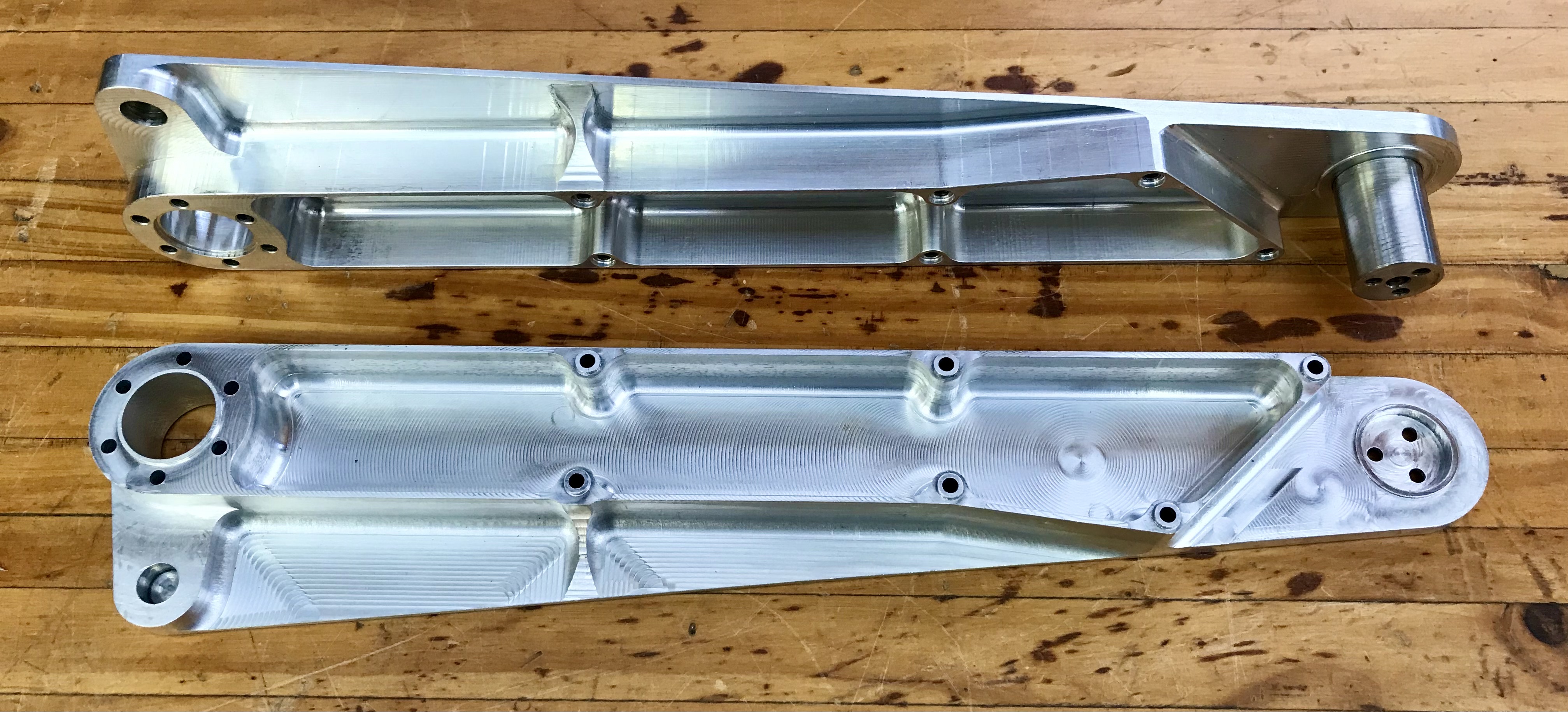

Separated femur halves with inserted steel knee shaft showing internal thin walled box shape and fastener bosses.

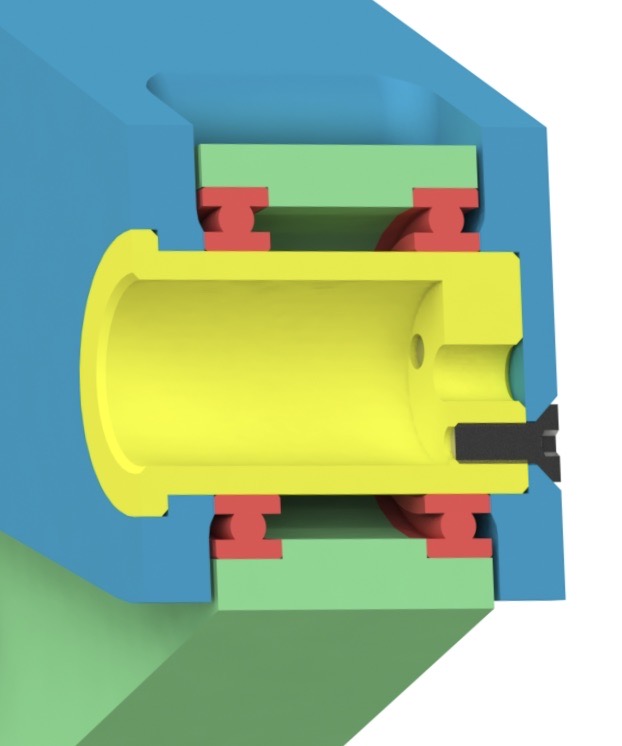

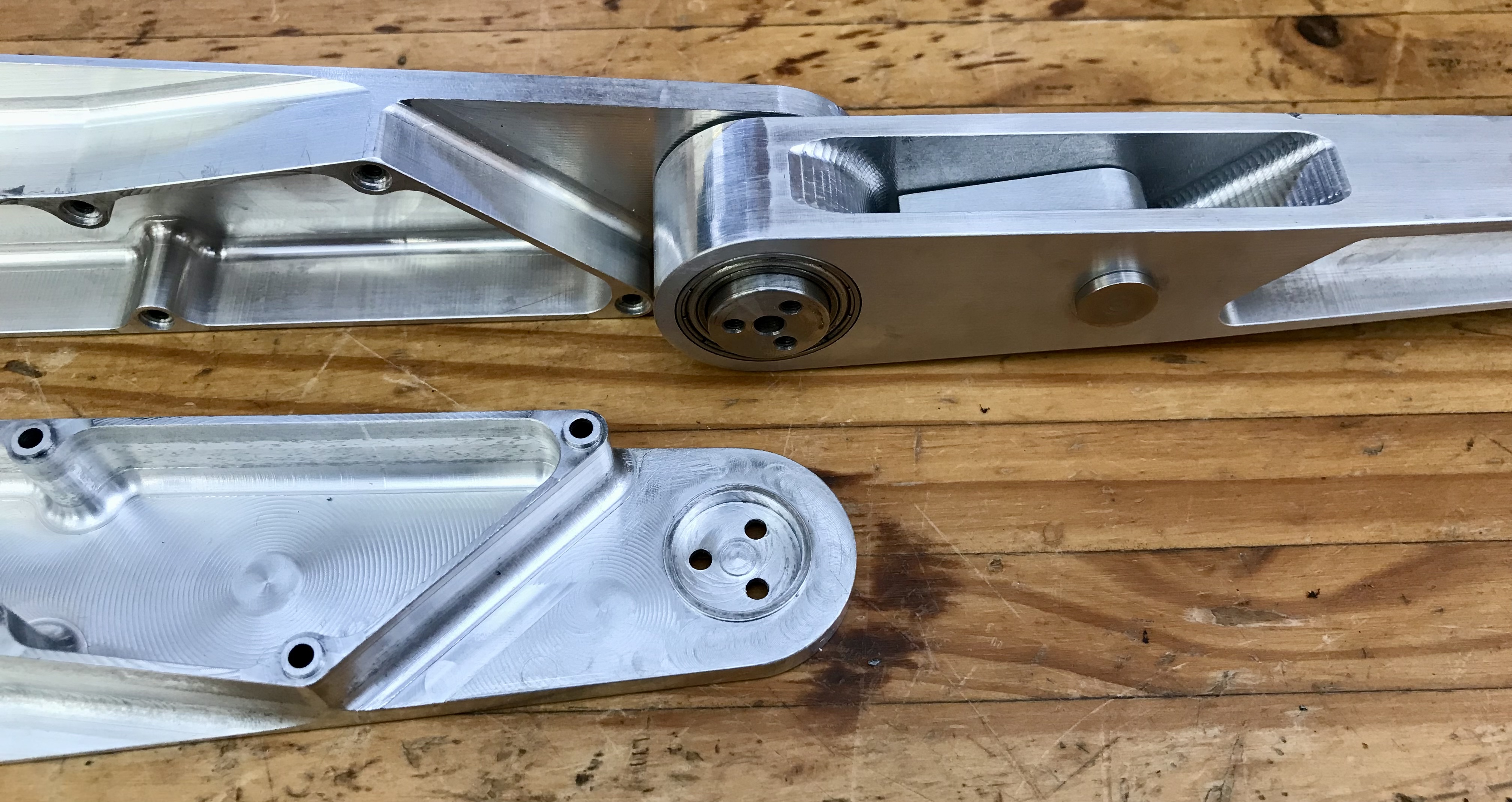

Exposed knee joint (Left) and cross section (Right) showing the bearings in red, tibia in green, femur in blue, and hollow steel knee shaft in yellow.

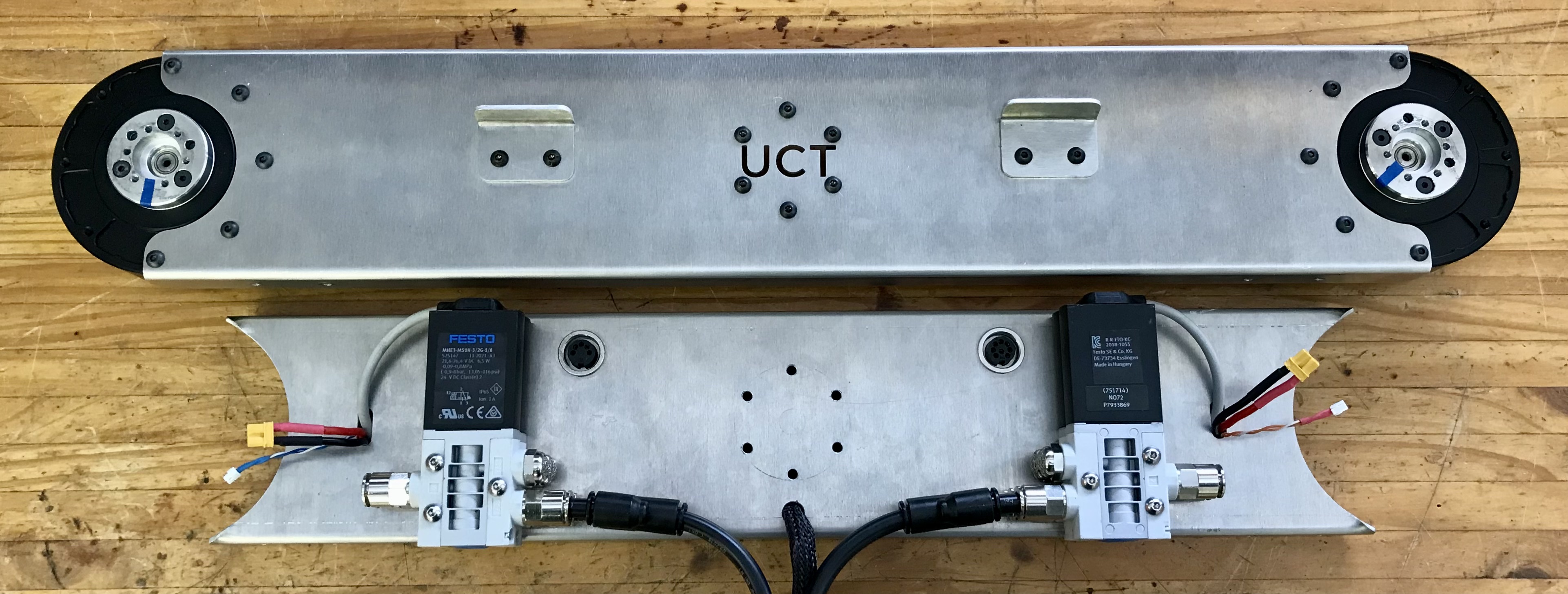

Sheet metal halves which make up the front (Top) and back (Bottom) of the body with mounted hip motors, solenoid valves, and signal DIN connectors.

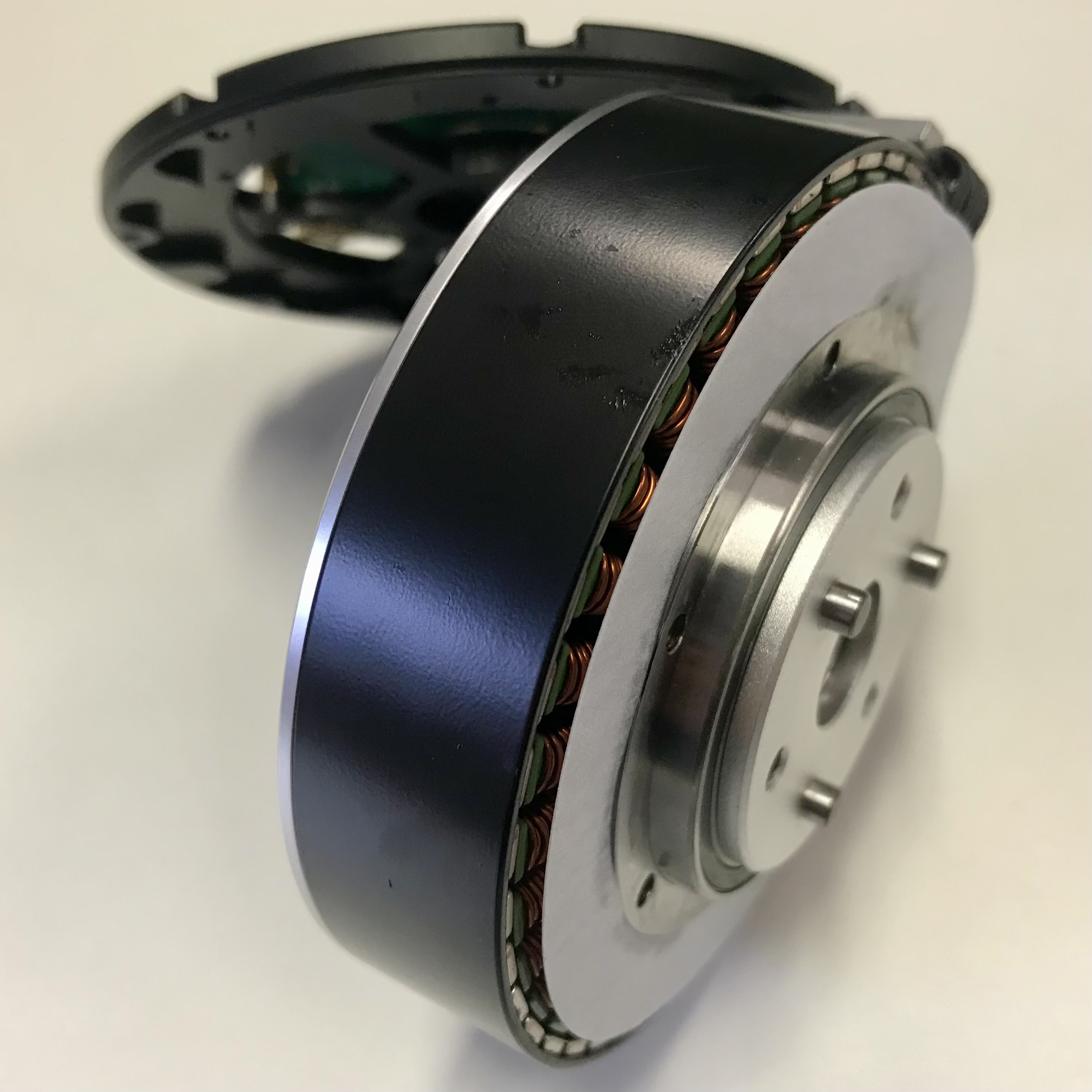

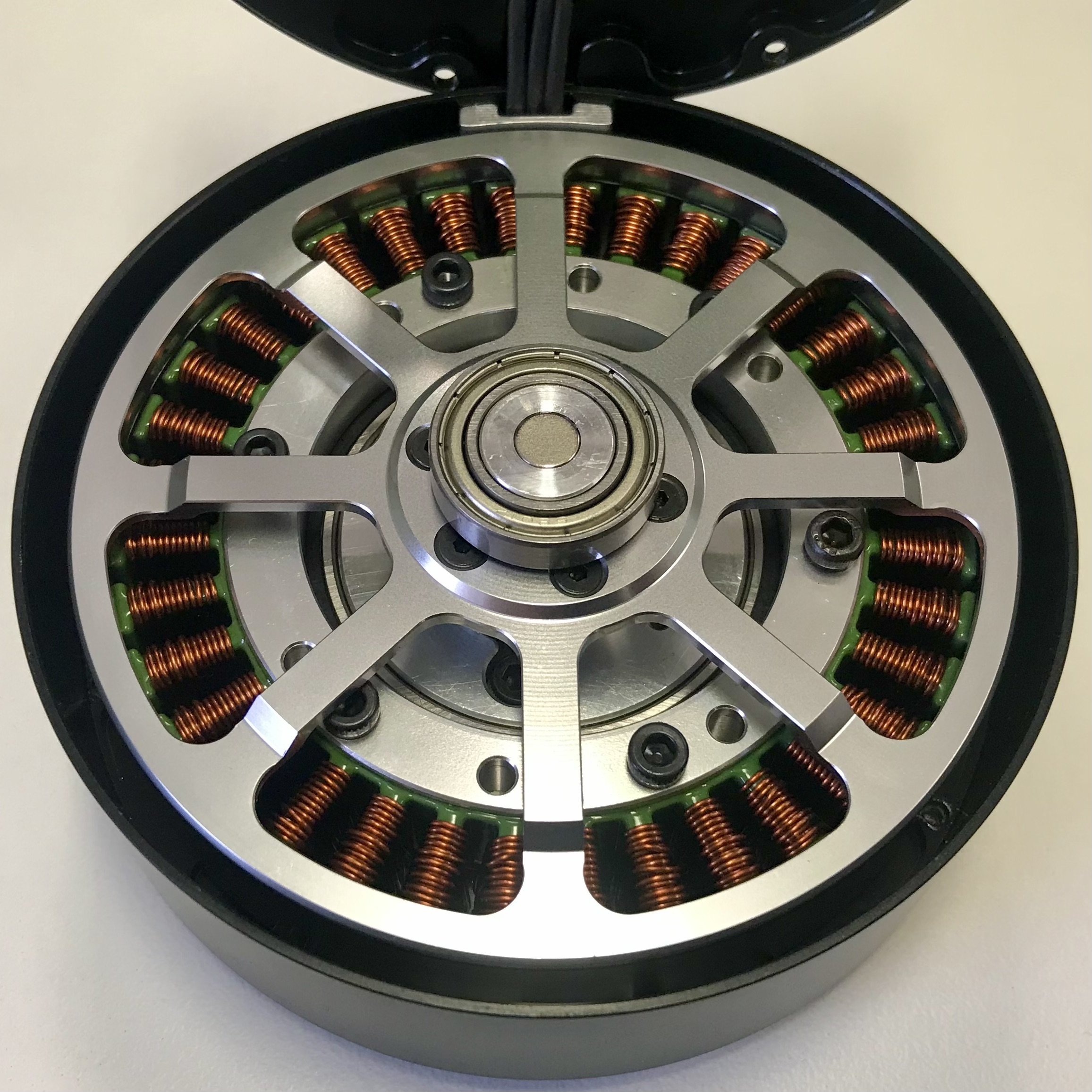

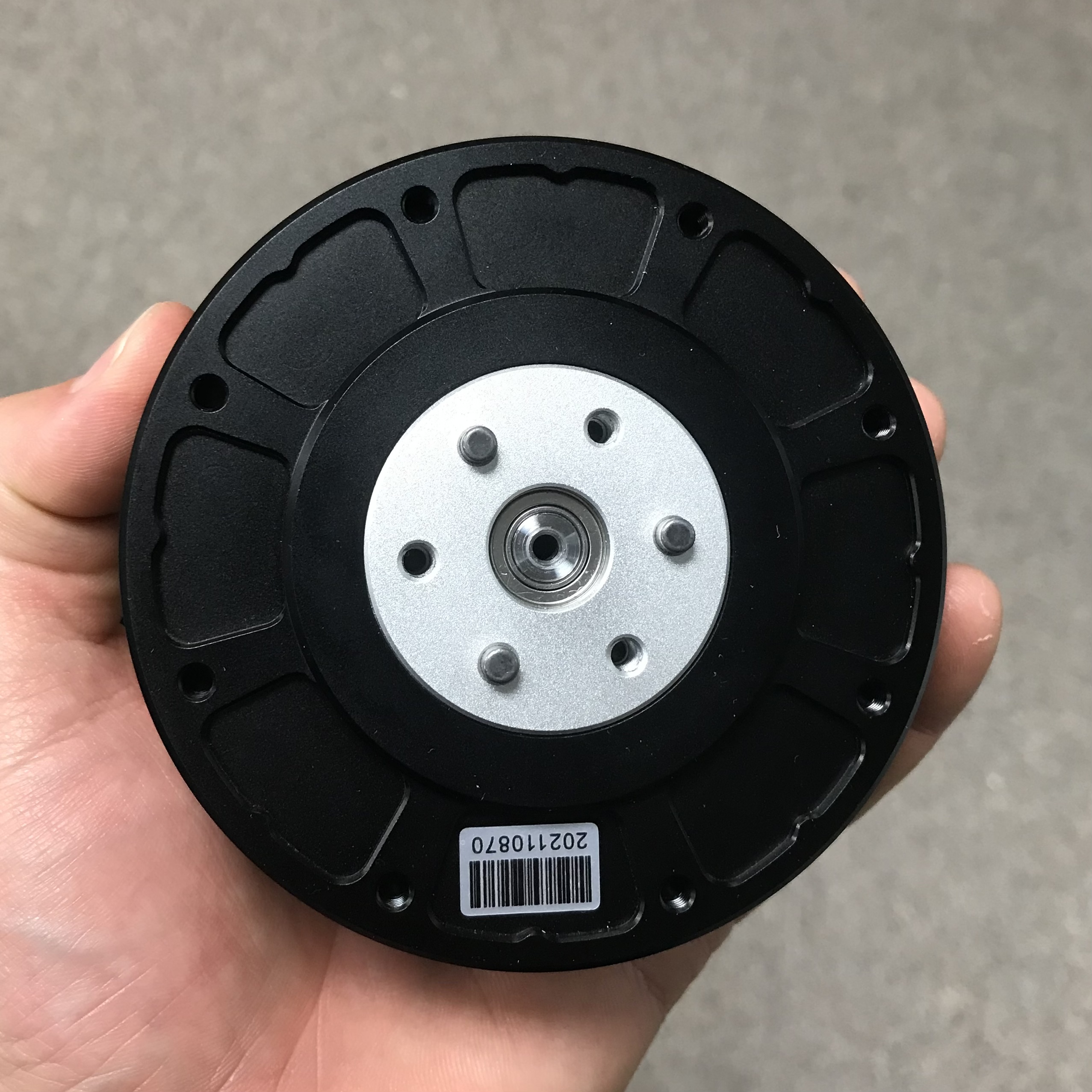

GIM8115-6 actuator (Left) with casing removed to show the back of the rotor (Middle) and it’s large 19mm stack length (Right).
